An alternator is an electrical machine that converts mechanical energy into electrical energy in the form of alternating current (AC). It operates based on the principle of electromagnetic induction, discovered by Michael Faraday in the 1830s. The key principles of operation for an alternator are as follows:

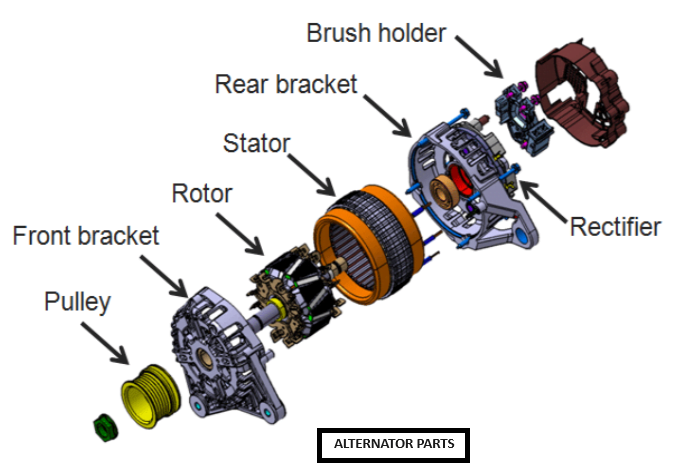

Alternator

1.Electromagnetic Induction:

When a conductor moves through a magnetic field or when there’s a change in the magnetic field around a conductor, it induces an electromotive force (EMF) or voltage across the conductor. This phenomenon is known as electromagnetic induction.

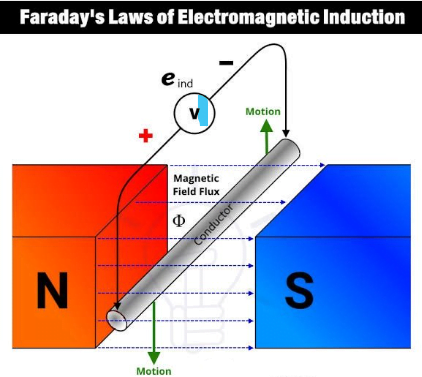

Electromagnetic Induction

2.Rotating Magnetic Field:

In an alternator, a magnetic field is created by either permanent magnets or by using an electromagnet. This magnetic field is typically located on the rotor (the rotating part) of the alternator. When the rotor spins, it creates a rotating magnetic field.

3.Stationary Windings:

Surrounding the rotor, there are stationary windings known as the stator. These windings are made up of coils of wire arranged in specific patterns. As the rotor rotates, the changing magnetic field cuts across the stationary windings, inducing an alternating voltage in them.

4.Three-Phase AC Output:

Alternators are often designed to produce three-phase alternating current (AC) output. In a three-phase alternator, the windings in the stator are configured in such a way that they produce three separate AC voltages, each phase being offset from the others by 120 degrees.

5.Output Rectification:

Although alternators produce AC electricity, many applications require direct current (DC). Therefore, alternators often incorporate a rectifier assembly, typically consisting of diodes, to convert the AC output into DC. This rectification process ensures that the output can be used to charge batteries or power DC loads.

6.Voltage Regulation:

Alternators are designed to produce a constant voltage output regardless of variations in speed or load. Voltage regulation mechanisms, such as voltage regulators, are employed to adjust the field current in the alternator’s rotor to maintain a stable output voltage.

Overall, alternators are essential components in various applications, including automotive charging systems, power generation in industrial and residential settings, and backup power systems. They provide a reliable source of electrical energy by converting mechanical energy into electricity through the principles of electromagnetic induction.
